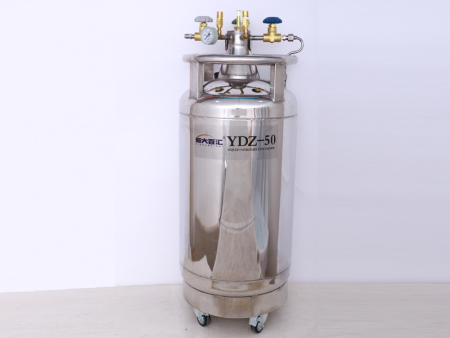

Ydz-50 self pressurized liquid nitrogen tank is welded by automatic argon arc welding equipment, with beautiful weld, no defects and high pressure; the surface of the product is polished, which makes the tank surface beautiful and generous!

Technical parameters of ydz-50 self pressurized liquid nitrogen tank:

1. Geometric volume 55L

2. Effective volume 50L

3. The daily evaporation rate of static liquid nitrogen is 2%

4. Infusion volume ≥ 5L / min

5. Tank outer diameter 455mm

6. Height 960mm

7. Empty weight 50kg

8. Standard working pressure 0.05Mpa

9. Working pressure 0.09mpa

10. The opening pressure of primary safety valve is 0.099mpa

11. The opening pressure of secondary safety valve is 0.15Mpa
